| First supported version |
V200R024C00 |
| Installation Type |

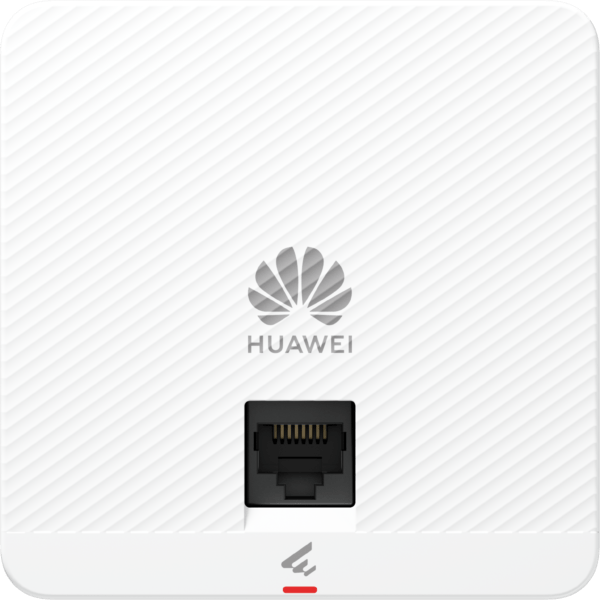

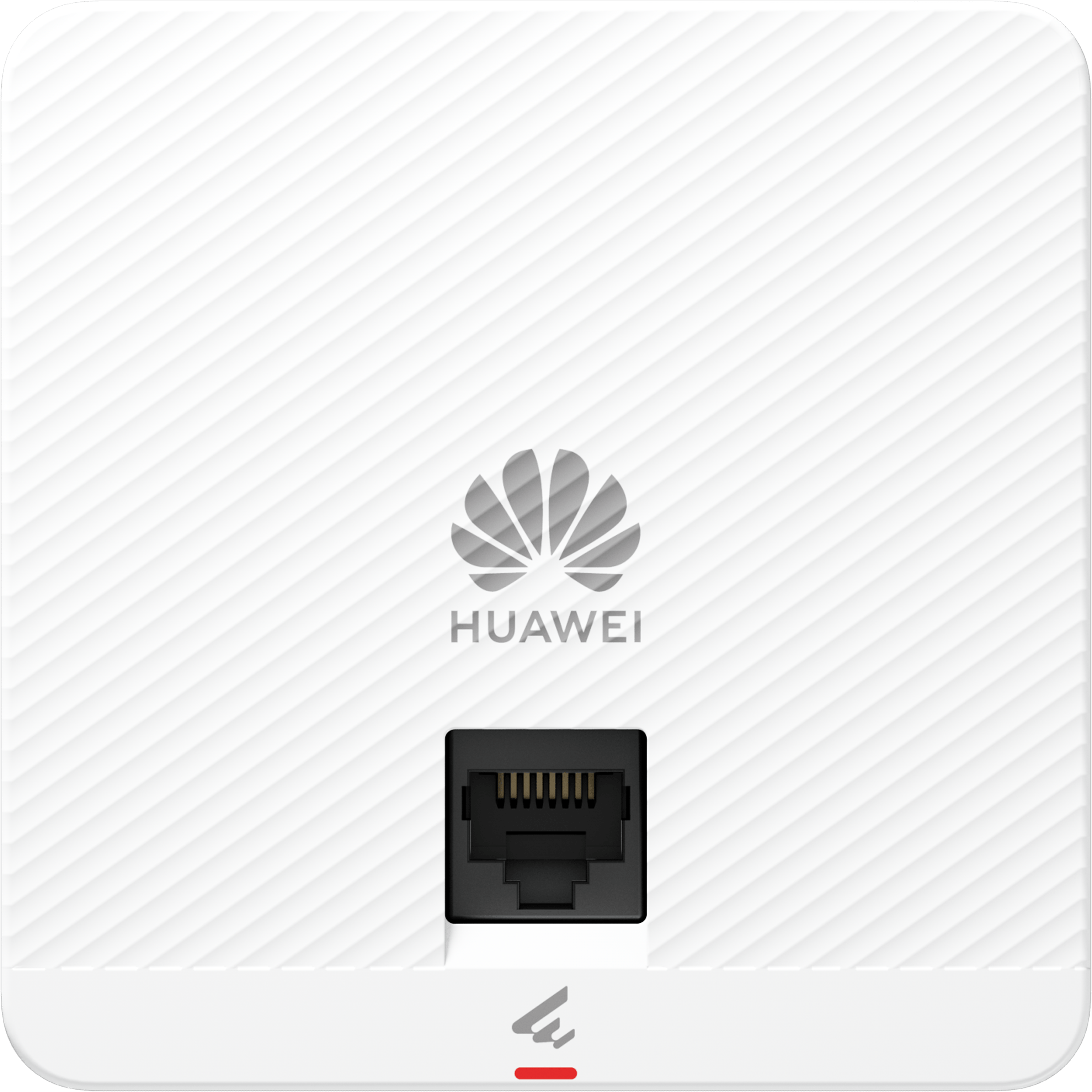

Junction Box (86 mm) |
| Dimensions without packaging (H x W x D) [mm(in.)] |
86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] |
98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
| Weight without packaging [kg(lb)] |
0.14 kg (0.31 lb) |
| Weight with packaging [kg(lb)] |
0.24 kg (0.53 lb) |
| CPU |
2-core, 1.2 GHz |
| Memory |
DDR3: 256 MB |
| Power supply mode |
PoE |
| Storage |
NAND Flash 256 MB |
| Input voltage range [V] |
PoE: 802.3af |
| Service port surge protection |
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Maximum number of physical ports on the entire device |
GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] |
53kPa – 106kPa ETSI 300 019-2-3 |
| Ground |
Floating ground |
| Radio number |
2 |
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface |
Built-in smart antennas |
| Antenna gain |
2.4 GHz: 3 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 2 dBi/chain (peak value) 1 dBi (combined gain) |
| Maximum transmit power |
2.4 GHz: 17 dBm/chain 20 dBm (combined power) 5 GHz: 17 dBm/chain 20 dBm (combined power) |
| MTBF [year] |
446 |
| MTTR [hour] |
2 |
| Maximum power consumption [W] |
9.1 |
| Maximum heat dissipation [BTU/hour] |
29.5 |
| 802.3bt power supply description |
The negotiated power supply mode is 802.3af, and no function is restricted. |
| 802.3at power supply description |
The negotiated power supply mode is 802.3af, and no function is restricted. |
| 802.3af power supply description |
The negotiated power supply mode is 802.3af, and no function is restricted. |
| Operating frequency band |
2.4GHz,5GHz |
| Frequency stability [ppm] |
+/-20 |
