Description

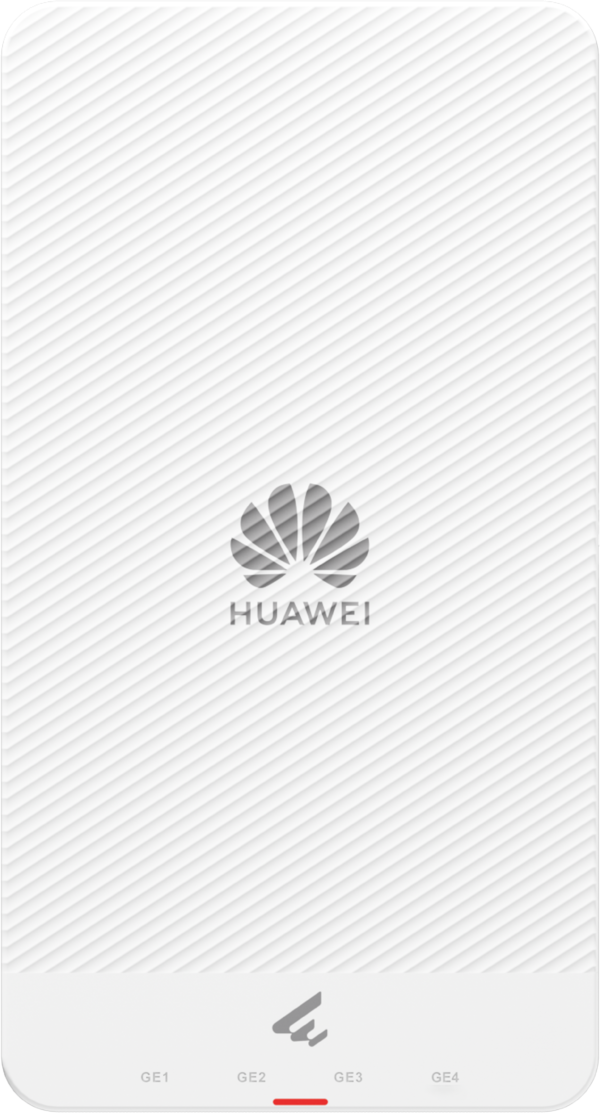

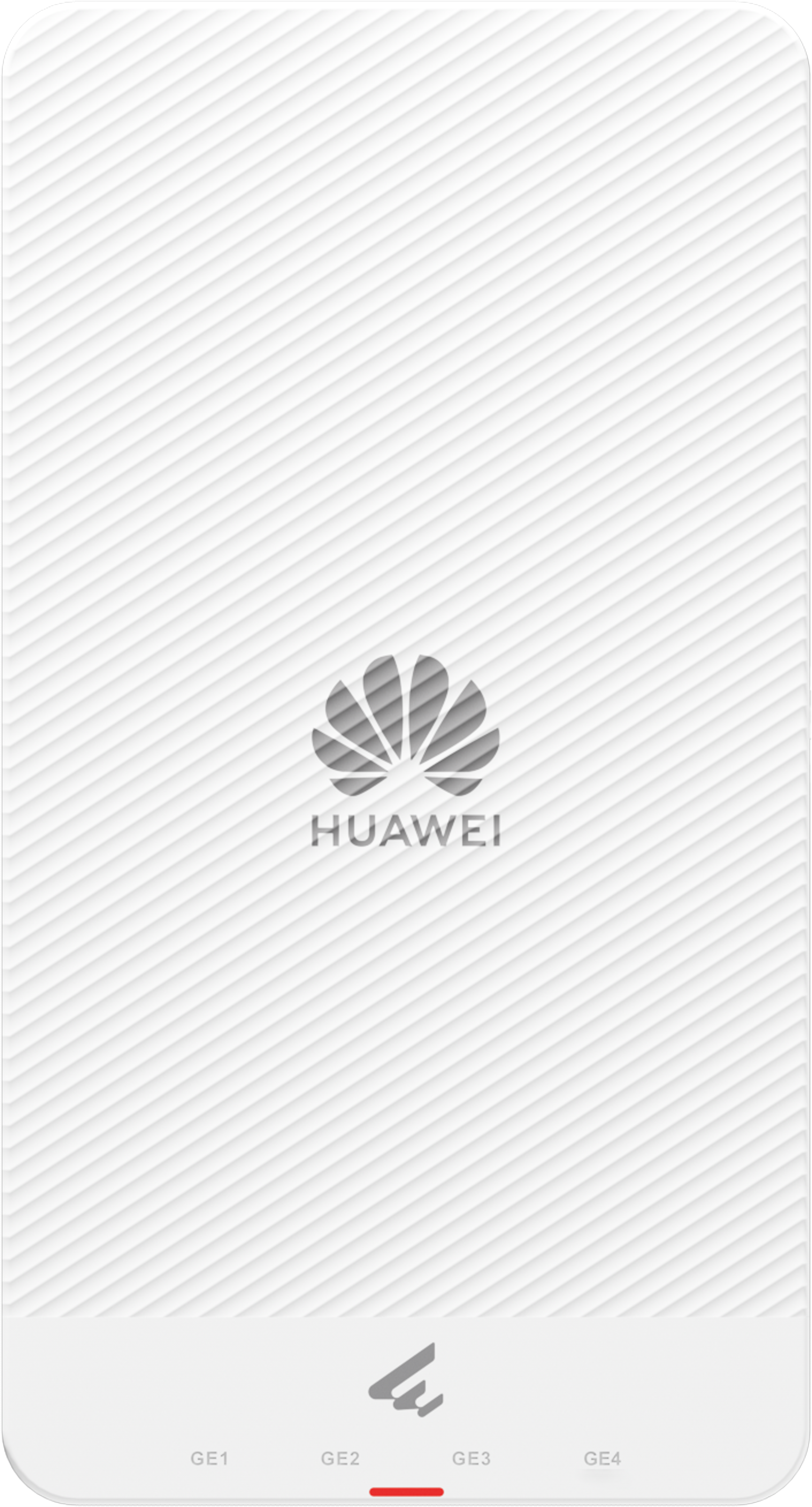

Huawei eKit AP263

First supported version	V200R024C00
Installation Type	Desk,Wall,Ceiling,Junction Box
Dimensions without packaging (H x W x D) [mm(in.)]	160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.)
Weight without packaging [kg(lb)]	0.23 kg (0.51 lb)
Weight with packaging [kg(lb)]	0.42 kg (0.93 lb)
CPU	2-core, 1.2 GHz
Memory	DDR3: 256 MB
Console port	None
Power supply mode	PoE
Storage	NAND Flash 256 MB
Rated input voltage [V]	NA
Input voltage range [V]	PoE: 802.3af
Service port surge protection	PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms, criterion B
Maximum number of physical ports on the entire device	GE (RJ45) x 5, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa – 106kPa ETSI 300 019-2-3
Ground	floating ground
Radio number	2
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain)
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
MTBF [year]	289.18
MTTR [hour]	2
Maximum power consumption [W]	9.4
Maximum heat dissipation [BTU/hour]	32.07
802.3bt power supply description	The negotiated power supply mode is 802.3af, and no function is restricted.
802.3at power supply description	The negotiated power supply mode is 802.3af, and no function is restricted.
802.3af power supply description	The negotiated power supply mode is 802.3af, and no function is restricted.
Operating frequency band	2.4GHz,5GHz
Frequency stability [ppm]	+/-20
