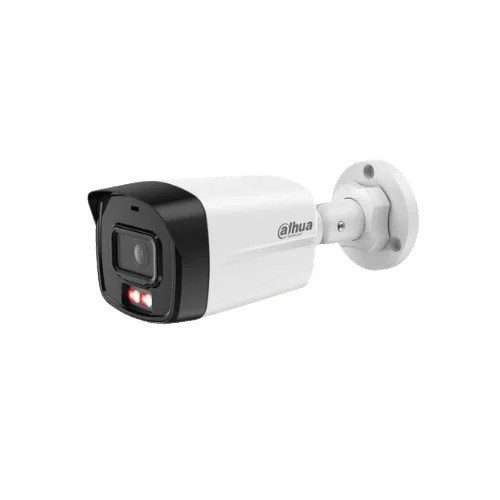

Dahua DH-IPC-B1E29-A-IL Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) (2 MP)@25/30 fps |
| ROM / RAM | 16 MB / 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux @ F1.6 (Color, 30 IRE); 0.0005 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | ＞ 56 dB |
| Illumination Distance | Up to 30 m (IR); Up to 15 m (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (Multi-core: IR + warm light) |
| Lens Type | Fixed-focal, M12 mount |
| Focal Length | 2.8 mm / 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H 105°; V 56°; D 126° 3.6 mm: H 87°; V 44°; D 105° |
| Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft) 3.6 mm: 1.3 m (4.27 ft) |
| DORI Distance | |
| 2.8 mm Lens | Detect: 43.9 m (144 ft) • Observe: 17.5 m (57 ft) • Recognize: 8.8 m (28.9 ft) • Identify: 4.4 m (14.4 ft) |
| 3.6 mm Lens | Detect: 58.9 m (193 ft) • Observe: 23.6 m (77 ft) • Recognize: 11.8 m (38.7 ft) • Identify: 5.9 m (19.4 ft) |
| Intelligence | |
| Human Detection | Supported |
| Smart Search | Works with Smart NVR to perform refined event extraction and merging |
| Video | |
| Video Compression | H.265; H.264H; H.264; H.264B; MJPEG (sub-stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Frame Rate | Main stream: 1920×1080@(1–25/30 fps) Sub stream: 704×576@(1–25 fps) / 704×480@(1–30 fps) |
| Stream Capability | 2 streams |
| Resolution Options | 1080p; 1.3M (1280×960); 720p; D1; VGA; CIF |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 32 kbps-4096 kbps H.265: 12 kbps-4096 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC / HLC / WDR | Yes / Yes / DWDR |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in Mic | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726 |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception; SMD (human) |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocols | IPv4 / IPv6; HTTP; HTTPs; TCP; UDP; ARP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
| Interoperability | ONVIF (Profile S & T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Browser Support | IE; Chrome; Firefox |
| Management Software / Mobile | Smart PSS Lite; DSS; DMSS; DoLynk Care (iOS / Android) |
| Cyber Security | |
| Encryption & Protocols | Video encryption; Configuration encryption; WSSE; Account lockout; Security logs; X.509 certificate support; HTTPS; Trusted boot/exec/upgrade |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: 2014/30/EU |
| Power | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | Basic: 1.4 W (12 VDC); 1.8 W (PoE) • Max: 3.4 W (12 VDC); 4.2 W (PoE) (with ICR switch + illuminator) |
| Environment | |
| Operating Temperature | –40 °C to +50 °C (–40 °F to +122 °F) |
| Operating Humidity | ≤ 95% (non-condensing) |
| Storage Temperature / Humidity | –40 °C to +60 °C (–40 °F to +140 °F) / ≤ 95% |
| Protection | IP67 |
| Structure | |
| Product Dimensions | 198.9 mm × 80.2 mm × 76.2 mm (7.83″ × 3.16″ × 3″) |
| Net Weight | 0.25 kg (0.55 lb) |
| Gross Weight | 0.37 kg (0.82 lb) |
