Description

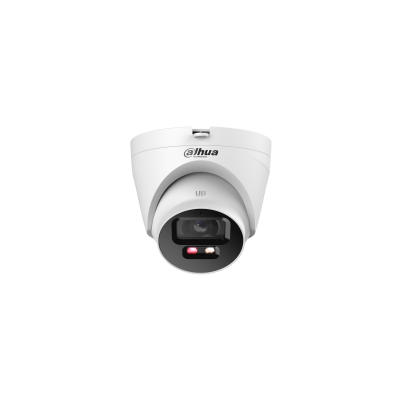

| Dahua DH-IPC-HDW1239V-PV 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Eyeball Network Camera |
|
|---|---|
| Series Overview | |
| The Dahua Entry Series offers simple installation, easy operation, and high performance-cost ratio. Ideal for small/medium-sized environments such as homes, retail stores, and small enterprises. | |
| Key Functions | |
| Siren & Light Active Deterrence: Built-in siren and light alarm triggered by perimeter events. Supports multiple voices and custom voice import.
Smart Dual Light: IR illuminator normally on at night; white light activates when a target enters the monitoring area, recording full-color video and snapshots, then reverts to IR for low light pollution. Human Detection: Detects human targets accurately while filtering non-human alarms. Smart H.265+ & H.264+: Scene-adaptive encoding improves compression efficiency, reduces storage and transmission costs. Protection: IP67 dust & water resistant; wide voltage tolerance ±30% for outdoor use. |
|
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max Resolution | 1920 × 1080 (2MP) |
| ROM / RAM | 128 MB / 128 MB |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min Illumination | Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (Illuminator On) |
| IR/Warm Light Distance | Up to 30 m |
| Illuminator Control | Auto / Manual |
| Illuminator Number | 1 IR LED; 1 Warm Light |
| S/N Ratio | >56 dB |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Type / Mount | Fixed-focal / M12 |
| Focal Length | 2.8 mm or 3.6 mm |
| Aperture | F1.6 |
| Field of View | 2.8 mm: H103° V55° D123° 3.6 mm: H86° V46° D103° |
| Close Focus Distance | 2.8 mm: 0.8 m, 3.6 mm: 1.1 m |
| DORI Distance (Detect, Observe, Recognize, Identify) | |
| 2.8 mm Lens | Detect: 44.1 m; Observe: 17.7 m; Recognize: 8.8 m; Identify: 4.4 m |
| 3.6 mm Lens | Detect: 53.8 m; Observe: 21.5 m; Recognize: 10.8 m; Identify: 5.4 m |
| Intelligence | |
| Human Detection | Supports classification & accurate human detection |
| Smart Search | Integrates with Smart NVR for event extraction and refined video search |
| Video | |
| Compression | H.265 / H.264 / H.264H / H.264B / MJPEG (substream) |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Max Frame Rate | Main: 1920×1080@25/30 fps; Sub: 704×576@25 fps / 704×480@30 fps |
| Resolution Options | 1080p, 1.3M, 720p, D1, VGA, CIF |
| Bit Rate | H.264: 32–4096 kbps; H.265: 12–4096 kbps |
| WDR / BLC / HLC | DWDR / Yes / Yes |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC / Speaker | Yes / Yes |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 |
| Alarm | |
| Events | Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, SMD (human), security exception |
| Network | |
| Port / Protocol | RJ-45 (10/100 Base-T) / IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P, Auto Registration |
| Interoperability | ONVIF Profile S & T, CGI |
| Max Users | 6 (Bandwidth 24 M) |
| Storage | FTP |
| Management | |
| Browser / Software / Mobile | IE, Chrome, Firefox / Smart PSS Lite, DSS, DMSS / iOS, Android |
| Security | |
| Features | Digest, WSSE, Account lockout, Security logs, X.509 certification, HTTPS, Trusted boot / execution / upgrade |
| Power | |
| Supply / Consumption | 12 VDC / PoE (802.3af) Basic: 1.8 W (12 VDC), 2.5 W (PoE) Max: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence + WDR + IR + warm light + speaker) |
| Environment | |
| Operating / Storage | Temperature: –40 °C to +60 °C Humidity: ≤95% non-condensing |
| Protection | IP67 |
| Structure | |
| Casing / Dimensions | Inner core: Metal+Plastic, Cover: Plastic / 100.9 × Φ109.9 mm |
| Weight | Net: 0.32 kg; Gross: 0.46 kg |
| Ordering Information | |
| Model: DH-IPC-HDW1239V-PV Accessories (Optional): DH-PFA109, DH-PFA13G, DH-PFA150, DH-PFA151, DH-PFA152-E, DH-PFB205W-E, DH-PFB220C, DH-PFB305W, DH-PFM320D-EN, DH-PFM321-EN, PFM900-E Integrated Mount Tester |
|
