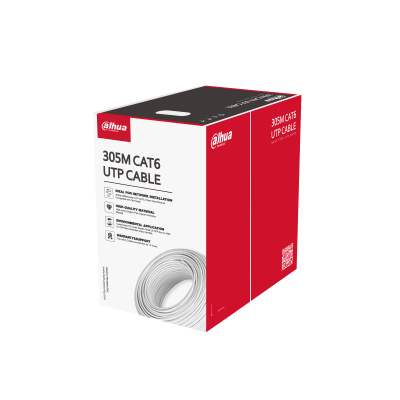

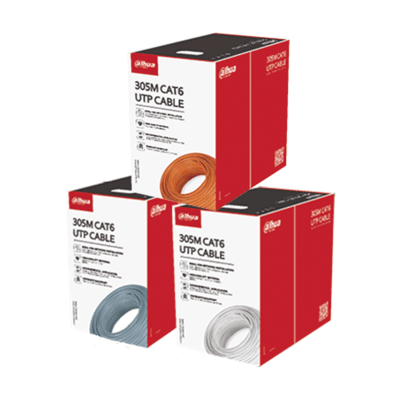

| Dahua DH-PFM920I-6UN-CN | UTP CAT6 Cable |
| System Overview |
Network cable for generic cabling, composed of 4 twisted wire pairs. Designed for system cabling within 100 meters.
- 305 m (1000 ft) per carton
- Supports Power over Ethernet (PoE) with a single cable
- High-purity oxygen-free copper conductor
- Customized PVC outer sheath with flame retardant properties
- Complies with ANSI TIA 568C.2 and CPR Eca standards
- 10-year warranty
|
| Conductor |
| Material |
Oxygen-free copper (99.95% purity) |
| Diameter |
0.53 mm ± 0.02 mm (0.02″ ± 0.0007″) |
| Insulation |
| Material |
HDPE |
| Diameter |
0.94 mm ± 0.05 mm (0.04″ ± 0.002″) |
| Color (4 Pairs) |
Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown |
| Separator Material |
PE |
| Sheath |
| Material |
PVC |
| Min. Thickness |
0.5 mm (0.02″) |
| Diameter |
5.8 mm ± 0.03 mm (0.23″ ± 0.0012″) |
| Color |
Grey RAL7046 |
| Electrical |
| Max DC Resistance per Conductor (1000Hz) |
9.0 Ω/100 m |
| Unbalanced Capacitance to Ground |
≤160 pF/100 m |
| Max DC Resistance Unbalance |
2% (pair intra), 4% (pairs inter) |
| Cable Capacitance |
≤5.6 nF/100 m |
| Characteristic Impedance (4–250 MHz) |
100 Ω ± 15 Ω |
| Mechanical |
| Tensile Strength (Sheath) |
≥13.5 MPa |
| Elongation at Break |
Sheath ≥150%, Insulation ≥300% |
| Bending Radius (-20°C, 4h) |
>8× cable diameter |
| Conductor Elongation at Break |
≥10% |
| Environmental |
| Insulation Shrinkage |
≤5% |
| Sheath Strength After Aging |
≥12.5 MPa, Elongation ≥125% |
| Low Temperature Bending Test |
No cracking |
| Heat Shock Test |
No cracking |
| Operating Temperature |
-20°C to +75°C (-4°F to 167°F) |
| Storage Temperature & Humidity |
-10°C to +40°C (14°F to 104°F), <60% RH |
| Packaging |
| Cable Length |
305 m ± 1.5 m (1000.66 ft ± 4.92 ft) |
| Inner Carton Dimensions |
416 × 412 × 220 mm (16.38″ × 16.22″ × 8.66″) |
| Net Weight / Gross Weight |
11.6 ± 0.6 kg / 12.5 ± 0.6 kg |
| Ordering Information |
| Model |
DH-PFM920I-6UN-CN |
| Description |
UTP CAT6 Cable, 305 m/carton |
