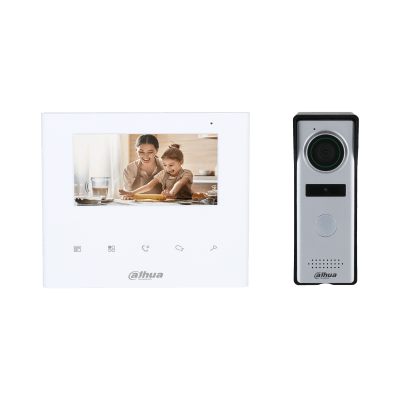

Dahua KTA04 Video Intercom Kit
Includes: DHI-VTH1020J (Indoor Monitor) & DHI-VTO1000J (Outdoor Station)
Indoor Monitor (DHI-VTH1020J)
| System | |
|---|---|
| Button Type | Touch button |
| Basic | |
| Display | 4.3″ TFT |
| Screen Resolution | 480 (H) × 272 (V) |
| Function | |
| Communication Mode | Analog |
| Performance | |
| Casing | ABS |
| General | |
| Color | White |
| Power Supply | 12 VDC 1 A |
| Power Adapter | Included |
| Installation | Surface mount |
| Certifications | CE / FCC |
| Accessory | Bracket (included) |
| Dimensions | 136.00 × 140.00 × 18.30 mm (5.35″ × 5.51″ × 0.72″) |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%–95% (RH) |
| Power Consumption | ≤ 2 W (standby); ≤ 5 W (working) |
| Net Weight | 0.16 kg (0.35 lb) |
| Gross Weight | 0.42 kg (0.96 lb) |
Outdoor Station (DHI-VTO1000J)
| System | |
|---|---|
| Button Type | Mechanical |
| Basic | |
| Camera | 1.3 MP CMOS |
| Field of View | Horizontal: 70° / Vertical: 40° |
| WDR | DWDR |
| Illuminator Type | IR Auto |
| Day/Night | ICR auto switch |
| Audio Input | 1 channel (microphone); pickup distance 0.5 m |
| Audio Output | 1 channel (speaker) |
| Status Indicator | Green: Power on |
| Function | |
| Communication Method | Analog |
| Unlock Mode | Remote unlock |
| Performance | |
| Casing | PC + ABS |
| Port | |
| Exit Button | 1 |
| Door Status Detection | 1 |
| General | |
| Color | Silver |
| Power Supply | Powered by indoor monitor |
| Installation | Surface mount |
| Certifications | CE / FCC |
| Accessory | Rain cover (included) |
| Dimensions | 131.45 × 46.00 × 33.80 mm (5.18″ × 1.81″ × 1.33″) |
| Protection Grade | IP66 (apply silicon sealant for full protection) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 10%–95% (RH) |
| Power Consumption | ≤ 1 W (standby); ≤ 3 W (working) |
| Net Weight | 0.18 kg (0.40 lb) |
| Gross Weight | 0.38 kg (0.84 lb) |
