Description

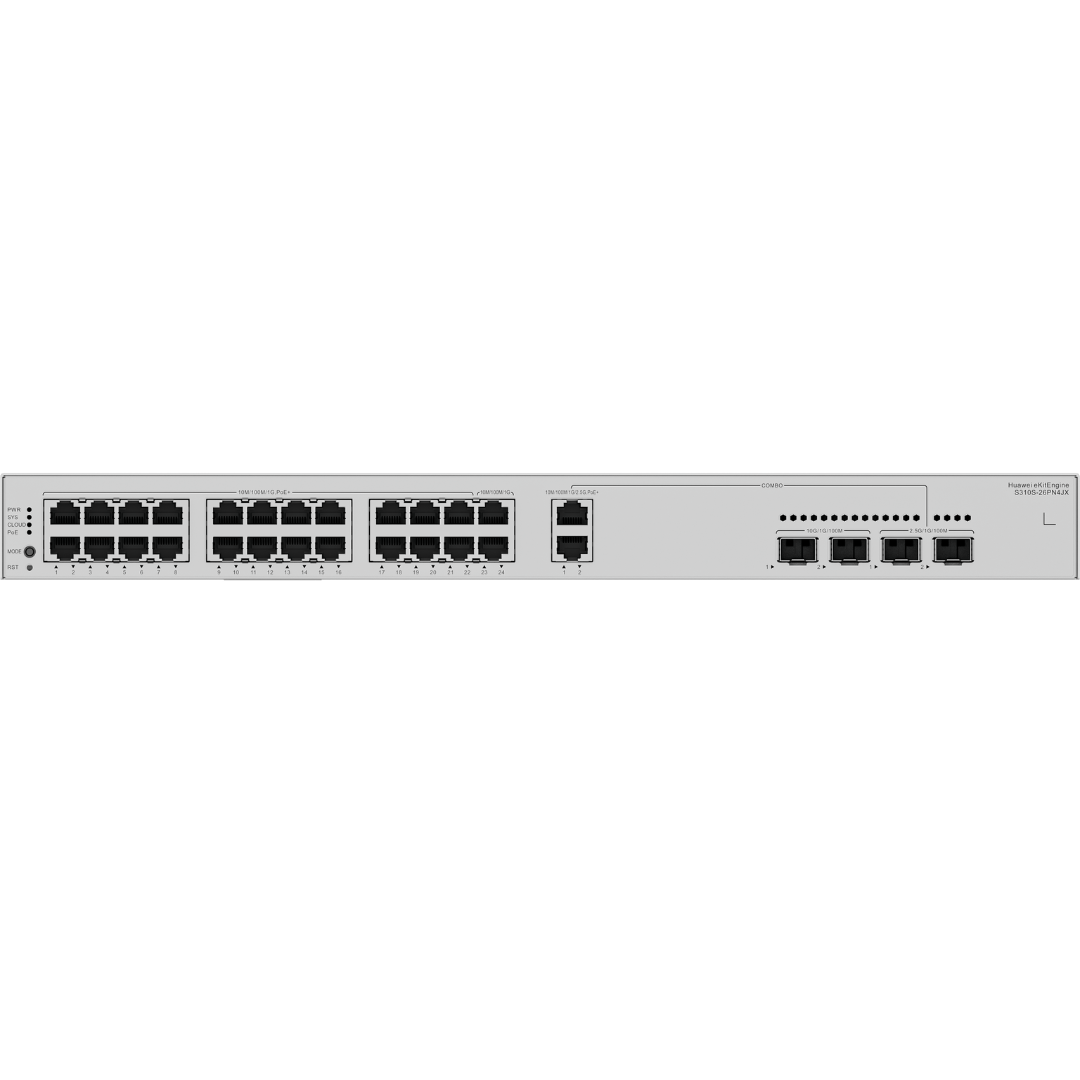

Huawei Ekit Switch Model S220S-26PN4JX

Integrated fixed device	Y
First supported version	V600R024C00
Certification	EMC certification Safety certification Manufacturing certification
Chassis material	Metal
Static power consumption [W]	5.18
Number of card slots	0
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm (1.72 in. x 9.84 in. x 7.36 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	113.0 mm x 310.0 mm x 240.0 mm (4.45 in. x 12.20 in. x 9.45 in.)
Chassis height [U]	1
Installation type	Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)]	1.34 (2.95)
Weight with packaging [kg(lb)]	2.07 kg (4.56 lb)
Typical power consumption [W]	10.31
Typical heat dissipation [BTU/hour]	35.18
Maximum power consumption [W]	10.94
Maximum heat dissipation [BTU/hour]	37.33
MTBF [years]	102.91
MTTR [hours]	2
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans)
Noise at high temperature (acoustic power) [dB(A)]	Noise-free (no fans)
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans)
PoE	Supported
Maximum PoE power consumption [W]	400
PoE+ power interfaces	24
Full load PoE power consumption 15.4W (802.3af)	24
Full load PoE power consumption 30W (802.3at)	13
GE RJ45	24 (22 PoE+) (1G/100M/10M)
10G SFP+	2 (10G/1G/100M)
2.5GE Combo (RJ45 + SFP)	2 (RJ45: 2.5G/1G/100M/10M; PoE+) (SFP: 2.5G/1G/100M)
Long-term operating temperature [°C(°F)]	–5°C to +40°C (41°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]	0.8 A
CPU	Dual-core, 600 MHz
Memory	DDR4: 512 MB
Flash memory	NAND flash: 256 MB
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Power consumption at 100% traffic [W]	10.35
