Description

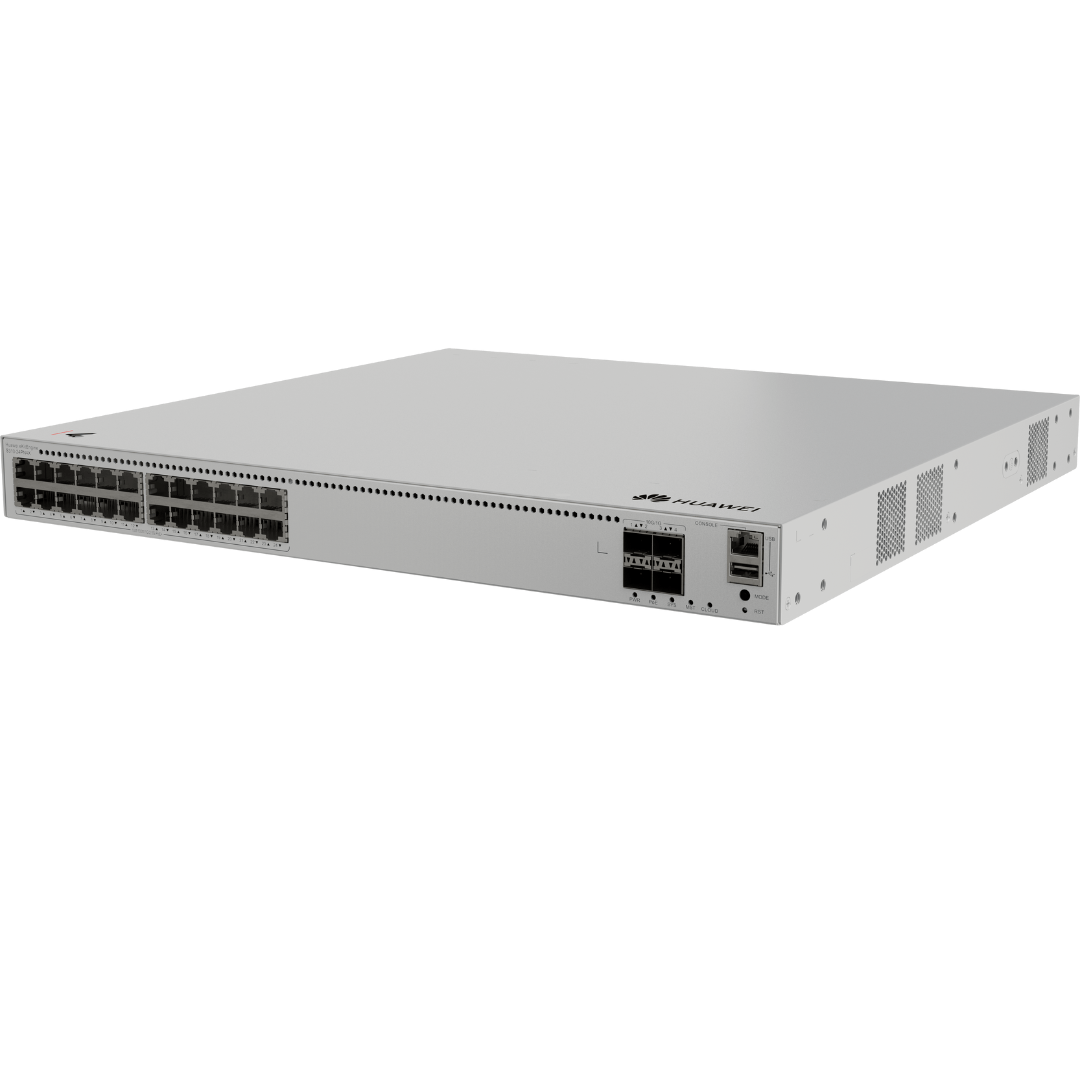

Huawei Ekit Switch Model S310-24PN4X

Integrated fixed device	Y
First supported version	V600R023C10SPC600
Certification	EMC certification Safety certification Manufacturing certification
Chassis material	Metal
Static power consumption [W]	37.1
Number of card slots	0
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1
Installation type	Rack mounting,Desk mounting
Weight without packaging [kg(lb)]	4.71 kg (10.38 lb)
Weight with packaging [kg(lb)]	6.89 kg (15.19 lb)
Typical power consumption [W]	54.8
Typical heat dissipation [BTU/hour]	186.98
Maximum power consumption [W]	– Without PoE: 77.70 W – Full PoE load: 517.30 W (PoE: 400 W)
Maximum heat dissipation [BTU/hour]	– Without PoE: 265.12 – Full PoE load: 1765.08
MTBF [years]	54.48
MTTR [hours]	2
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47.9
Noise at high temperature (acoustic power) [dB(A)]	60.9
Noise at normal temperature (acoustic pressure) [dB(A)]	34.22
Number of power slots	0
Number of fans modules	2
Maximum number of physical ports on the entire device	28
Maximum number of 10GE ports	4
Maximum number of 2.5GE ports	24
Maximum number of GE ports	28
Maximum number of FE ports	24
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	– AC input: 100 V AC to 240 V AC, 50/60 Hz – High-voltage DC input: 240 V DC
Input voltage range [V]	– AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz – High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A
Console port	RJ45
USB	Supported
Dying gasp	Supported
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Power consumption at 100% traffic [W]	56.1
Maximum PoE power consumption [W]	400
PoE+ power interfaces	24
Full load PoE power consumption 30W (802.3at)	13
Full load PoE power consumption 15.4W (802.3af)	24
