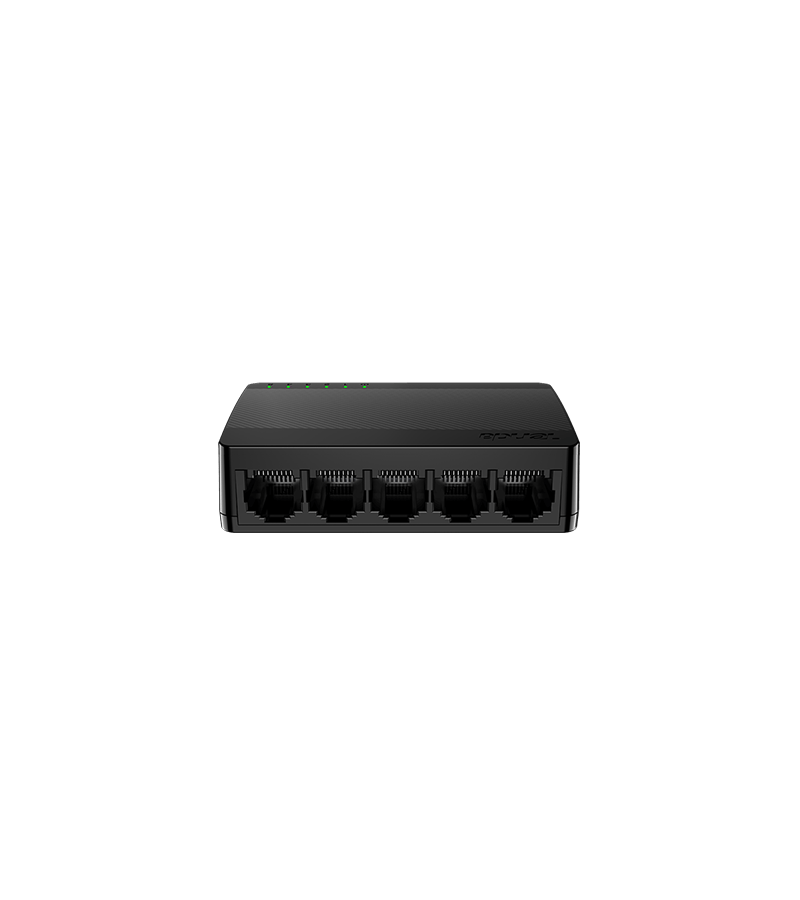

Tenda SG105 Switch

SG105, designed by Tenda, are Ethernet switches with all gigabit ports.With high performance, fancy design and easy to maintain feature, SG105 are especially fit for scenarios requiring fast transmission, such as schools, families, SMBs and small-scale surveillance. The switches provide several Ethernet ports for downlink extension, and can also connect to uplink network devices. Compared with 100M switches,SG105 have a transmission speed 10 times faster, capable of transmitting large files, thus solving the video lag and video loss problems for HD surveillan ce. Besides, SG105 support both desktop installation and wall mounting, can be played once plugged, are easy to use without configuration. The switches are ideal choices for you to improve network performance.

Description

Network standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab
LED Indicator	1* Power, 5* Link/Act
Interfaces	5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	82mm52mm22mm
Material	Plastic
Level of protection	ESD: Air discharge: ±8kV Contact discharge: ±6kV
Forwarding mode	Store-and-forward
Switch capacity	10Gbps
Packet forwarding rate	7.44Mpps
Buffer	1Mb
MAC address table	2K
Power	Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter )
Power consumption	Max:<3W
Mounting	Desktop mounting: support Wall mounting: support
Environment	Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing
Certification	FCC, CE, RoHS
Protocols	CDMA/CD
MAC address learning	Auto-Learning and Auto-Aging
Funtions	plug-and-play
