Description
Hardware Features

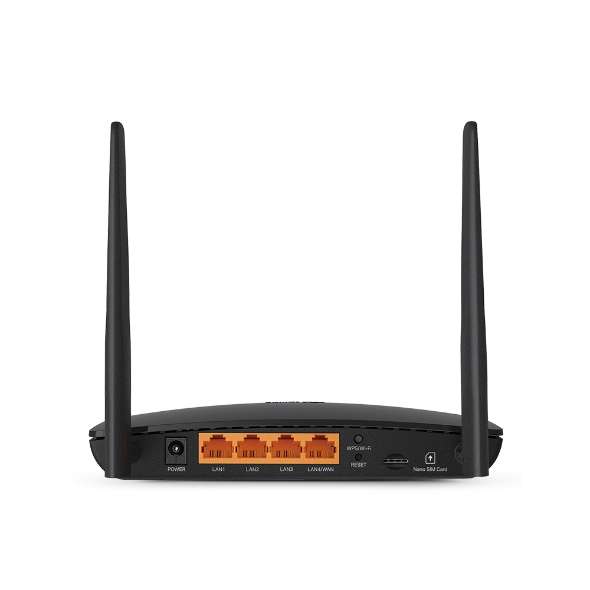

| Interface | 3× 10/100Mbps LAN Ports 1× 10/100Mbps LAN/WAN Port 1× Nano SIM Card Slot 2× External SMA-F Antenna Interface |
|---|---|
| Buttons | WPS/Wi-Fi Button, Reset Button |
| Power Supply | 12V/1A |
| Dimensions | 174 × 124.5 × 33.5 mm |
| Antenna | 2 Detachable External 4G LTE Antennas |
Wireless Features
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps (2.4 GHz), 433 Mbps (5 GHz) |
| Reception Sensitivity | 5 GHz: 11a 54M: -78 dBm 11ac VHT20 MCS0: -92 dBm — MCS8: -72 dBm 11ac VHT40 MCS0: -90 dBm — MCS9: -67 dBm 11ac VHT80 MCS0: -87 dBm — MCS9: -64 dBm 2.4 GHz: |
| Functions | Wireless Radio Control, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Network Type | 4G: FDD-LTE & TDD-LTE 3G: HSPA/UMTS |
Software Features
| QoS | Traffic Prioritization by Device or Application |
|---|---|
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Management | Access Control, Local Management, Remote Management, Reboot Schedule |
| DHCP | Server, Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link DDNS |
| Firewall | DoS, SPI, IP and MAC Binding |
| Protocols | IPv4 and IPv6 |
| Guest Network | 2.4 GHz x1, 5 GHz x1 |
| VPN Server | PPTP, OpenVPN |
Others
| Certification | CE, RoHS |
|---|---|
| Package Contents | Router, Ethernet Cable, Power Adapter, Quick Guide |
| System Requirements | Windows, macOS, Linux, Java-enabled browser, Nano SIM |
| Environment | Operating Temp: 0–40°C Humidity: 10–90% non-condensing |
