Description

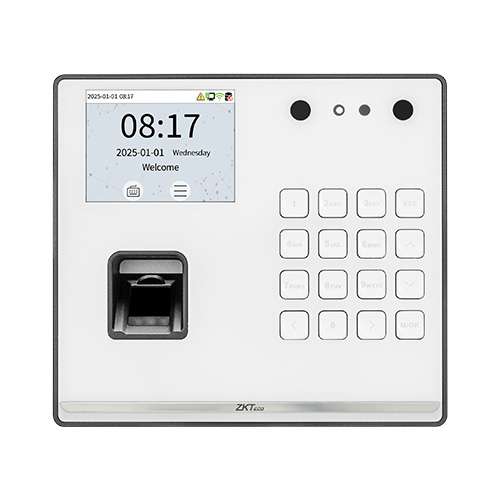

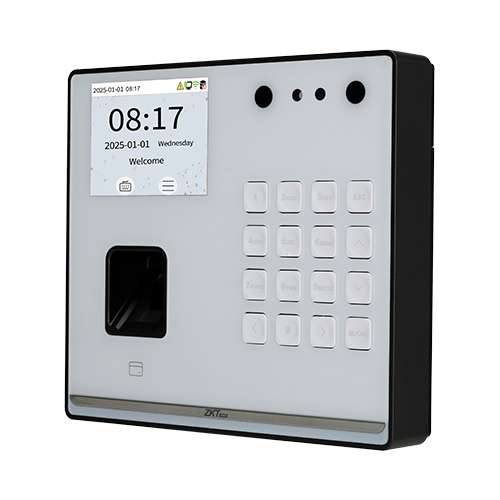

Zkteco SenseFace M2F-LR

Specification

Parameters	Details
Display	2.8″ TFT Color LCD Screen (320×240)
Camera	Binocular Camera @ 1MP
Operating System	Linux
Hardware	CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8Ω@1W; Supplement Light: Yes; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing: Black & White
Authentication Method	Fingerprint / Face / Card / Password (Physical Keypad)
Fingerprint Capacity	1,000 (1:N) (Standard)
Face Capacity	500 (1:N) (Standard)
Card Capacity	1,000 (1:N) (Standard)
User Capacity	1,000 (1:N) (Standard)
Transaction Capacity	150,000 (1:N)
Max. User Password Length	8 Digits
Biometric Authentication Speed	Less than 1 sec (Fingerprint); Less than 1.2 sec (Facial Authentication)
Touchless Biometric Recognition Distance	50cm to 180cm (Facial Authentication)
False Acceptance Rate (FAR)	≤ 0.02% (Visible Light Facial Authentication); ≤ 0.0001% (Fingerprint)
False Rejection Rate (FRR)	≤ 0.05% (Visible Light Facial Authentication); ≤ 0.1% (Fingerprint)
Biometric Algorithm	ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Card Type	ID Card@125 kHz (Standard), IC Card@13.56 MHz (Optional)
Standard Functions	ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPS / SSH Backend Access, T9 Keyboard (Input)
Optional Functions	IC Card, Wi-Fi, Backup Battery
Power Supply	DC 12V 3A
Backup Battery (Optional)	2,000 mAh (Lithium Battery); Max Operating Hours: 4h; Max Standby Hours: 7h; Estimated Charging Time: 5h
Operating Temperature	-5°C to 45°C
Operating Humidity	10% to 90% RH (Non-condensing)
Dimensions (L×W×H)	154 mm × 138 mm × 34 mm
Gross Weight	1.03 kg
Supported Software	ZKBio Zlink (Mobile & Cloud), ZKBio Time (On-Premise)
Installation	Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
Certifications	ISO14001, ISO9001, CE, FCC, RoHS
