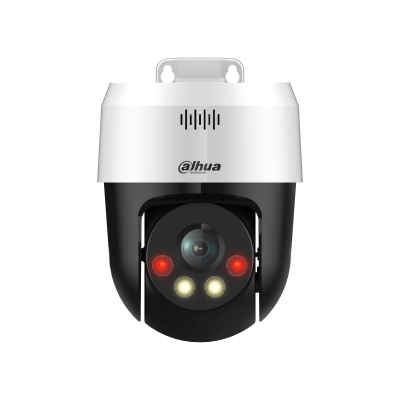

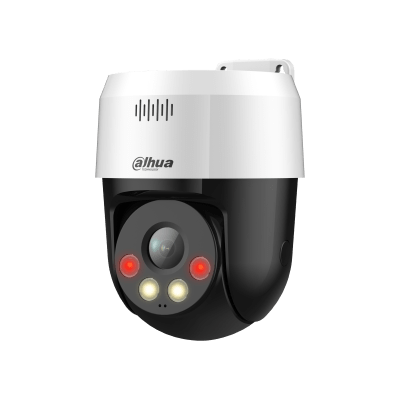

5MP Smart Dual Light Active Deterrence Network Camera
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ CMOS |
| Pixel | 5 MP |
| Max. Resolution | 2560 (H) × 1920 (V) |
| ROM / RAM | 128 MB / 128 MB |
| Electronic Shutter Speed | 1 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE) |
| Illumination Distance | 30 m (IR); 30 m (Warm Light) |
| Illuminator Control | Manual / Auto / Off |
| Illuminator Number | 2 (IR light); 2 (Warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° |
| Close Focus Distance | 0.3 m (0.98 ft) |
| Iris Control | Fixed |
| DORI Distance (4.0 mm Lens) | |
| Detect | 77.4 m (253.94 ft) |
| Observe | 31.0 m (101.71 ft) |
| Recognize | 15.5 m (50.85 ft) |
| Identify | 7.74 m (25.39 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–345°; Tilt: 0°–+80° |
| Manual Control Speed | Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed | Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s |
| Presets | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Smart Event | |
| IVS | Tripwire, Intrusion |
| Human Detection | Supported |
| Intelligence | |
| SMD | SMD 3.0 |
| Active Deterrence | |
| Light Warning | Warm light flash (5–30 s duration, adjustable frequency) |
| Sound Warning | 1 default + 10 custom alarms; volume 0–100%; playback 1–10 times |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264B/M/H, MJPEG (Sub Stream) |
| Streams | 2 Streams |
| Resolution | 5M (2560×1920); 4M (2560×1440); 3M (2304×1296); 1080p; 720p; D1; CIF |
| Frame Rate | Main: 5M–720p @ (1–25/30 fps); Sub: D1/VGA/CIF @ (1–25/30 fps) |
| Bit Rate | H.264: 104–8192 kbps; H.265: 41–8192 kbps |
| Day/Night | Auto (ICR); Color/B&W |
| BLC / HLC / WDR | Supported (DWDR) |
| White Balance | Auto / Indoor / Outdoor / Manual / Tracking / Lamp modes |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR, 3D NR |
| Defog | Electronic |
| Privacy Masking | 4 Areas |
| Audio | |
| Compression | PCM, G.711a, G.711Mu, G.726, AAC |
| Input / Output | 1 Built-in Mic / 1 Built-in Speaker |
| Network | |
| Port | RJ-45 (10/100 Base-T) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DDNS, SSL, FTP, ARP, RTCP, RTP, IP Filter, RTMP |
| Interoperability | ONVIF (Profile S & T), CGI, SDK, RTMP, P2P |
| Streaming | Unicast / Multicast |
| Users | Up to 20 (64 Mbps total bandwidth) |
| Storage | Micro SD (up to 256 GB), FTP |
| Browser | IE 7+, Chrome, Firefox, Safari |
| Software | Smart PSS, DMSS, Player, ConfigTool, NVR, Smart Player |
| Mobile App | iOS, Android |
| Certification | |
| Standards | CE, FCC |
| Power | |
| Supply | 12 VDC/1.5 A ±10% or PoE (802.3af) |
| Consumption | Basic: 3.5 W; Max: 10 W (Illuminator) |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Humidity | ≤95% |
| Protection | TVS 2000 V Lightning, Surge, Voltage Transient, Waterproof/Dustproof |
| Structure | |
| Dimensions | 140.5 mm × Φ111.0 mm (5.53″ × Φ4.37″) |
| Net Weight | 0.5 kg |
| Gross Weight | 1.0 kg |
| Remarks | |
| * The precision of presets for PTZ cameras may vary. For high-accuracy requirements, consult Us. | |
